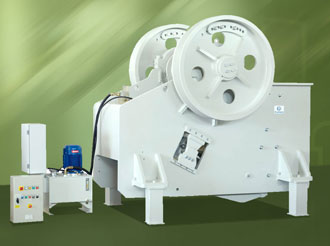

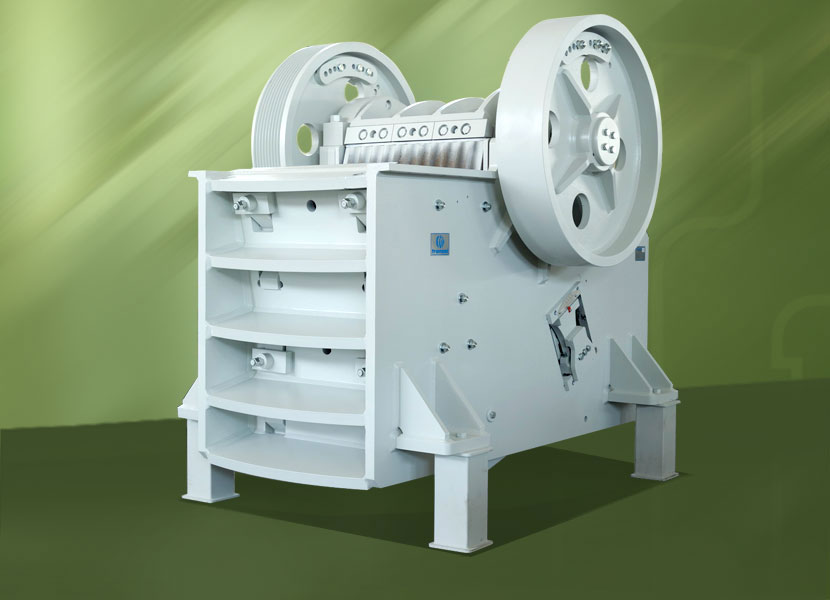

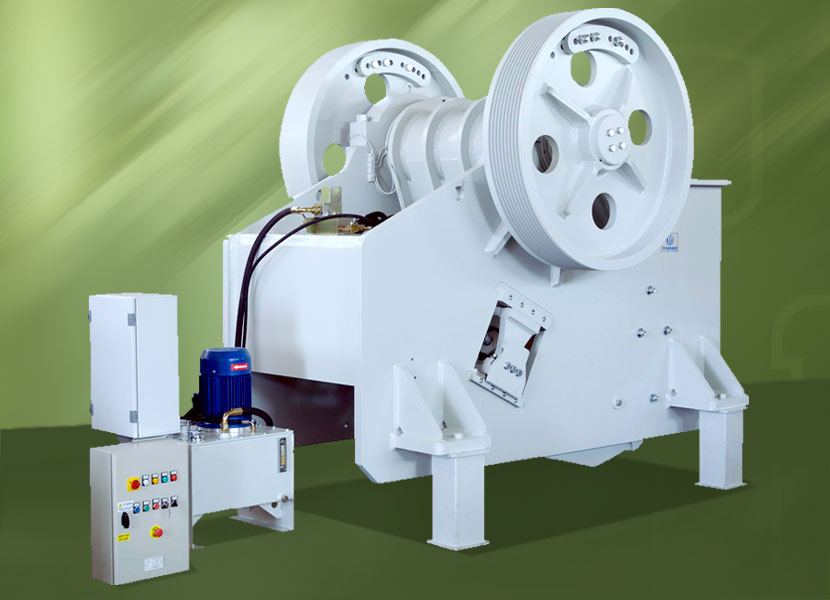

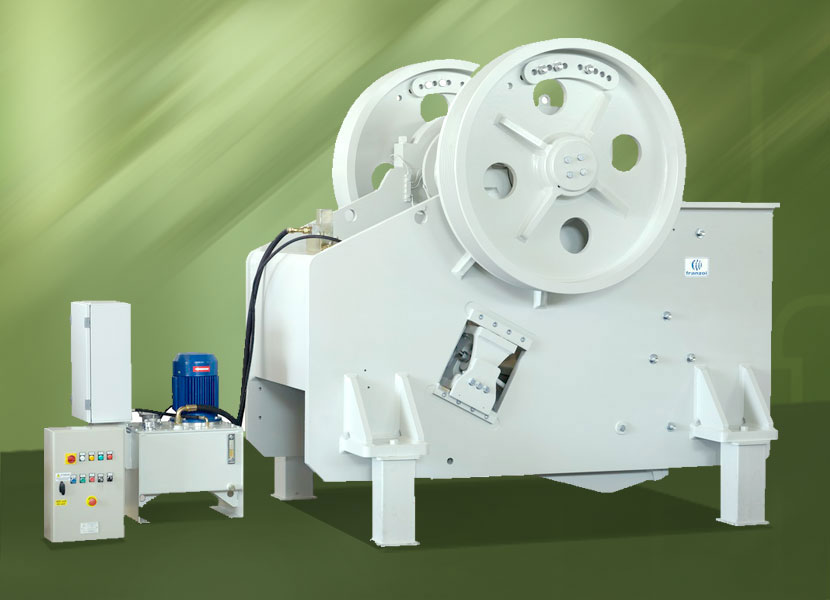

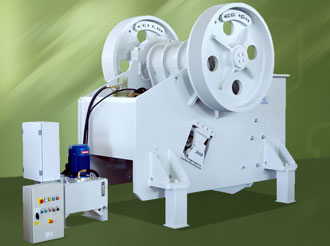

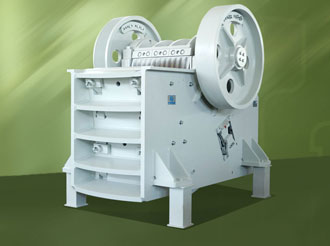

Primary jaw crusher with hydraulic adjustment

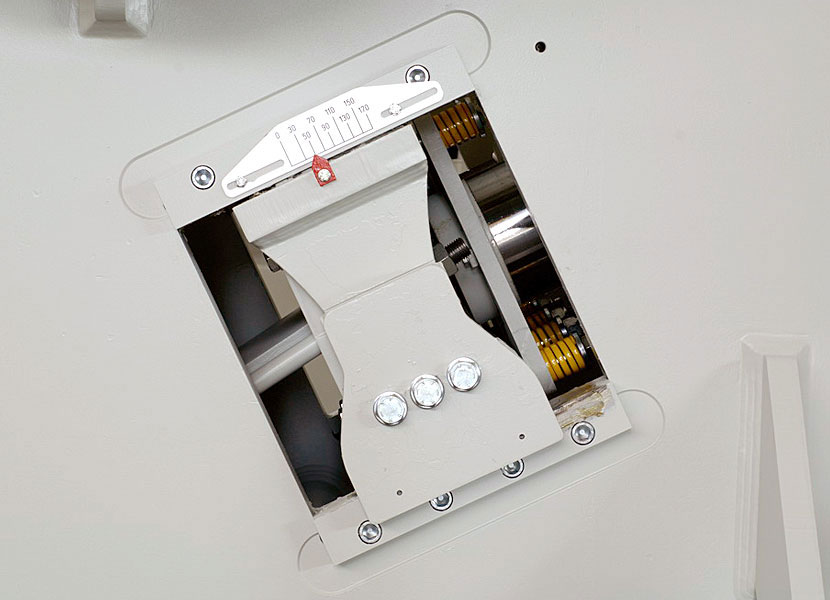

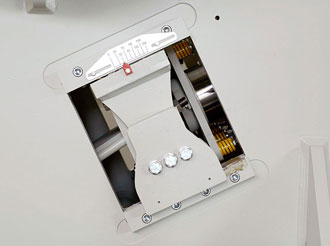

The FPI1072 Jaw Crusher from Franzoi Metalmeccanica S.r.l. is designed and manufactured for the processing of stone materials, rocks, minerals, and recycling of inert materials. Thanks to its pair of crushing jaws, it guarantees the crushing of the loaded material, reducing it to the particle size specified in the technical data. The manganese steel jaws are split into two halves and are fixed to the crusher using innovative, advanced technical solutions that permit rapid replacement, drastically reducing the machine’s downtime. The machine is adjusted to change the size of the final product, or to compensate for the wear on the jaws, using two hydraulic cylinders that also perform the locking function. This system requires no stoppers or other mechanical locks and ensures, adjustments take only a few seconds. It is particularly efficient at emptying the crushing chamber in cases of blockage of the machine due to a loss of electrical power.
IMAGES GALLERY
TECHNICAL CHARACTERISTICS
| Feed opening dimensions | 1.070 x 720 [mm] |
| Feed particle dimensions | 150 ÷ 700 [mm] edge |
| Particle size of final product | 60 ÷ 170 [mm] edge |
| Recommended motor power | 75 ÷ 90 [kW] |
| Recommended drive shaft rpm. | 250 [rpm] |
| Output | Varies according to the fed material and the crusher configuration, 130 ÷ 300 [ton/h] |
| Total weight of crusher, including hydraulic control unit | 21.300 [kg] |
| Machine dimensions | 3.055 x 2.190 x 2.700 [mm] |
